In recent years, the trend of craft spirits has gradually emerged. Whether it is brewing whiskey or gin, small distilleries are attracting increasing attention from entrepreneurs, winemakers, and even restaurant owners. But if you want to create a bottle of truly unique and stable spirits, creativity alone is not enough – you need a set of suitable craft distillery equipment.
Craft Distillery Equipment Overview
Many people just started making spirits and thought that as long as they had passion and recipes, the equipment would be fine. But when they started brewing their first pot of distilled spirits, they would understand how important the equipment is in the entire process chain.
The right craft distillery equipment not only makes your production more efficient, but also allows you to better control key details such as temperature, alcohol content, and flavor retention. Especially for small-batch producers, each batch of wine is a “test” for the market. Whether the equipment is stable and easy to operate is directly related to whether you can turn your creativity into a finished product.
What is craft distillery equipment?
Craft distillery equipment refers to equipment designed specifically for small-scale, craft spirit production. This type of equipment usually has the following characteristics:
- Small and flexible, suitable for small or medium-sized production scales
- Focus on quality and process details to ensure pure flavor
- Possessing diverse functions to meet the needs of different types of spirits
- Easy to operate and maintain, suitable for hand-made brewing
The basic composition of craft distillery equipment
A complete small craft distillery usually includes the following links. Each link is supported by corresponding equipment, which is a complete distillation system connected in series.
Raw Material Handling System
- Malt miller: used to grind grains into particles suitable for mash. Choose one with an adjustable tooth pitch for higher efficiency.
- Mash Tun: used to convert starch in grains into sugar. The material is mainly 304 stainless steel, with a heating jacket and stirring paddle.
- Fruit pulp pretreatment tank: sterilize or soften fruit and plant raw materials.
Small suggestion: plan space and drainage in advance, and do not place the equipment operation area too densely, otherwise, subsequent maintenance will be troublesome.
Fermentation system
- Fermentation tank: It is recommended to use a stainless steel tank with a cooling jacket for stable temperature control.
- Automatic exhaust system: Control CO₂ release and air intake to maintain a stable fermentation environment.
- CIP system: Used for regular cleaning and disinfection of the fermentation system and pipelines.
I have seen many start-up distilleries use plastic barrels for fermentation in order to save budget. It can be used, but the temperature cannot be controlled and the stability is poor. You will spend more money to remedy it later.

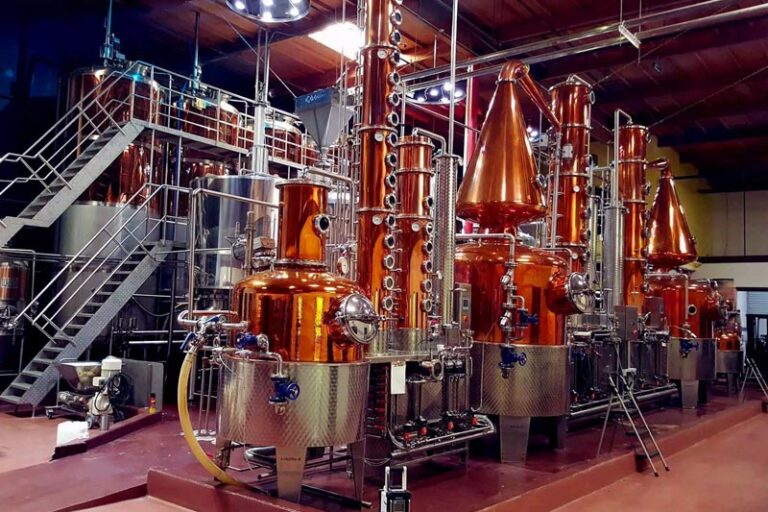

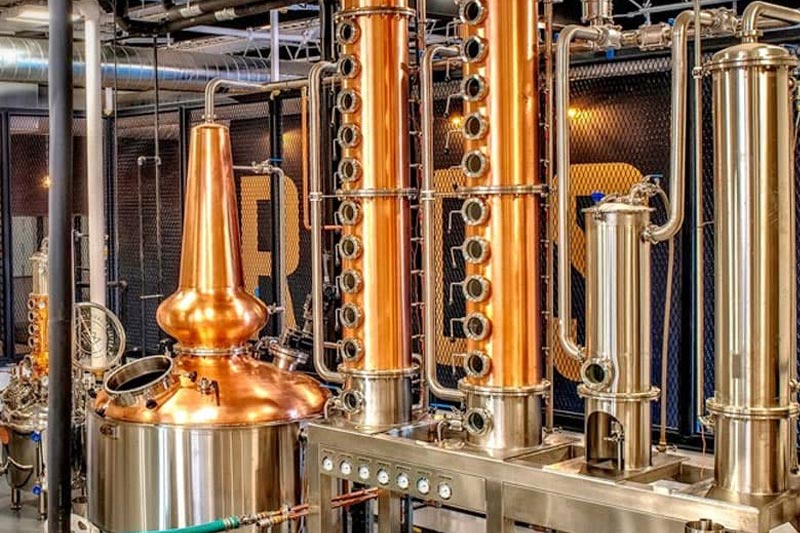

Distillation equipment
- Pot Still: Suitable for heavy-flavored wines such as whiskey and brandy. The distilled wine has layers and characteristics.
- Column Still: Suitable for categories such as vodka and rum that require high alcohol purification.
- Condenser: Cools steam into liquid.
- Fractional distillation control system: Separates “head wine” and “heart wine”.
Practical advice: If your budget allows, you can choose a distillation system with a sight glass, a thermometer, and multiple tower sections to achieve multi-stage distillation and enhance the flavor level of the product.
Storage and maturation equipment
- Stainless steel wine storage tanks: suitable for short-term storage or blending before bottling.
- Oak barrels: used for long-term maturation to enhance the structure and complexity of the wine. It can give spirits a rich aroma, such as vanilla, smoke, and caramel.
Filling system
In order to improve the stability of wine quality, small distilleries need to use fine filtration equipment to remove suspended impurities. At the same time, they are equipped with filling lines suitable for small batches to ensure the beauty and safety of product packaging.
We have customer feedback: In the early stage, we focused on winemaking but found that filling was a bottleneck after the wine was produced. It is recommended to plan this part clearly in the early stage.
What kind of wines can be brewed with craft distillery equipment ?
Alcohol | Brief Introduction | Main Equipment |
whisky | It is made from mashed grains, fermented, distilled, and aged in oak barrels. | Copper pot stills, fermentation tanks, mash tuns, aging barrels |
Vodka | It is usually made from grains or potatoes and is distilled multiple times. It has a refreshing and pure taste. | Distillation tower, fermentation tank, fine filtration system |
gin | The spirit is flavored with juniper berries and other botanical ingredients, giving it a complex aroma. | Pot still, vegetable basket, fermentation tank |
rum | A fermented product from sugar cane molasses, it has a variety of flavors and can be aged or drunk right away. | Pot stills, fermentation tanks, aging barrels |
Brandy | It is distilled based on fermented fruit juice and is often matured in oak barrels. | Pot stills, fermentation tanks, aging vessels |
It can be seen that no matter what kind of spirit is brewed, the fermentation tank and distiller are the most basic “core components”. Different types of liquor have different equipment details and auxiliary machine configurations.
How to choose the right craft distillery equipment ?
Specify what kind of alcohol
Different alcohols require different equipment structures:
Alcohol | Recommended Equipment |
Gin, Vodka | Column still |
Whiskey, Brandy | Pot still or pot-tower combination |
wine | Kettle machine with pomace handling system |
Matching production scale with production capacity
Small spirits factories usually have an annual output of several hundred to several thousand liters. The capacity of the equipment should match the expected production capacity to avoid excessive investment waste or too small capacity to limit capacity expansion. It is recommended to choose modular or expandable equipment in the initial stage to facilitate subsequent upgrades.
- 100-300L: suitable for home brewing, start-ups, and experiments
- 500-1000L: suitable for small craft breweries, restaurants, and bars
- Above 1000L: suitable for medium and large breweries and exporters
Select the heating method
- Electric heating: low cost, but average efficiency
- Steam heating: recommended for factories with a capacity of more than 500L
- Direct fire heating: special flavor but difficult to control
Equipment material and process
- Copper: Copper stills help remove impurities and improve the quality of the alcohol, but they are more expensive and complex to maintain.
- Stainless steel: Stainless steel equipment is corrosion-resistant, easy to clean, and suitable for automated production.
Advantages of copper distillation equipment:
Advantage | Specific instructions |
Strong thermal conductivity | Copper has high thermal conductivity, more precise temperature control and faster response. |
Can remove odor | Copper can react with sulfides to eliminate pungent or unpleasant smells in wine. |
Durable and textured | Good copper equipment can last for decades and gets better with use . |
Attractive appearance | The appearance is gorgeous and full of retro feel. |
Temperature control and automation level
Temperature control is crucial to the fermentation and distillation process. Craft distillery equipment is often equipped with precise temperature control systems to help stabilize the flavor. The degree of automation varies, and the operator’s skills and production efficiency requirements must be considered when choosing.
After-sales service and technical support
Distillation equipment involves complex processes. When choosing a supplier, after-sales service and technical support are equally important. It is recommended to choose an experienced and reputable manufacturer to ensure smooth installation, commissioning, and operation of the equipment.
Budget
The investment in craft spirits production equipment is large, and you need to balance the budget and equipment performance. Don’t just pursue low prices, give priority to quality and subsequent maintenance costs to ensure long-term stable production.
Production stage | Recommended combination | Budget range (USD) |
Start-up trials | 200L pot tower + electric heating + 2 fermentation tanks + simple filling | $15,000 – $25,000 |
Growth Stage | 500L steam heating + tower distillation + automatic filling line | $30,000 – $60,000 |
Large factory | 1000L and above automatic system + CIP + environmental control | $80,000 – $150,000 |
FAQ
How much does a set of craft distilling equipment cost?
The price range is wide, from a few hundred dollars for entry-level models to tens of thousands of dollars for commercial configurations.
Choose a pot still or a column still?
- Pot Still:Suitable for spirits with complex flavors, such as whiskey and rum
- Column Still:Suitable for spirits with high purity requirements, such as vodka and brandy
How to control the temperature and pressure during the distillation of spirits?
Craft distillery equipment is generally equipped with automatic temperature control systems, pressure safety valves, intelligent display control panels, etc., which can achieve precise control. High-end systems support digital tracking and remote monitoring to improve operational safety and consistency.
How can small craft breweries choose reliable equipment suppliers?
Refer to the following points:
- Whether customized design solutions are provided
- Whether complete installation guidance and after-sales service are provided
- Whether there are real customer cases and successful delivery records
- Whether there is export experience and can handle international transportation and customs declaration matters
