Craft Brewery Systems: Turnkey 3.5 to 60 BBL Brewing Systems
A craft brewery system is a complete set of brewing equipment: the brewhouse, the fermentation and bright tanks, and the cooling, piping and controls that connect them. Micet Craft builds turnkey craft brewery systems from 3.5 BBL to 60 BBL in one factory in Jinan, China, so every vessel and connection is designed to fit the others. Most systems are customized to the customer’s site, power and beer styles.
Choose your system size
One US barrel (BBL) is about 117 litres. Each size has its own page; click a system below for details.
| System | Batch size | Typical customer |
|---|---|---|
| 3.5 BBL | about 410 L | Small taproom, pilot brewery |
| 5 BBL | about 590 L | Small brewpub |
| 7 BBL | about 820 L | Brewpub, restaurant |
| 10 BBL | about 1,170 L | Production-scale brewpub |
| 15 BBL | about 1,760 L | Regional brewery |
| 20 BBL | about 2,350 L | Regional brewery |
| 25 BBL | about 2,930 L | Packaging brewery |
| 30 BBL | about 3,520 L | Packaging brewery |
| 35 BBL | about 4,110 L | Large packaging brewery |
| 40 BBL | about 4,690 L | Large packaging brewery |
| 50 BBL | about 5,870 L | Large packaging brewery |
| 60 BBL | about 7,040 L | Large packaging brewery |
What a turnkey craft brewery system includes
- Brewhouse: mash/lauter tun and boil/whirlpool tun in a 2-vessel layout, or 3- and 4-vessel layouts for higher output; optional hot and cold liquor tanks; infusion or decoction mashing; electric, steam or direct-fire heating
- Cellar: conical fermenters sized to your fermentation cycle, and bright tanks for maturation, conditioning and carbonation
- Cooling: insulated glycol tank, chiller, sanitary glycol pump and wort heat exchanger
- Pipework and pumps: sanitary stainless steel pipework with tri-clamp fittings, and a VFD-controlled wort pump
- Controls: PID control with manual switches, semi-automatic PLC, or fully automatic PLC with recipe storage; Schneider or ABB electrical components
- Extras: malt mill, stainless steel work platform, CIP system, and filling equipment on request
As a guide, a 10 BBL system brews 1 to 2 batches a day and needs about 100 m² of floor space. Power can be 3-phase 380 V (also 220, 415 or 480 V) or single-phase 220 V, at 50 or 60 Hz.
How we build and test
Vessels are made from SUS304 or SUS316 food-grade stainless steel with 100% TIG welding and an interior polished to Ra 0.4 µm or better. Jackets are tested at 5 bar for 12 hours, shells at 4 bar, and every tank has a 48-hour water test before packing. Our tank range has been independently verified against the technical documentation of the EU Pressure Equipment Directive 2014/68/EU (voluntary verification), and pressure vessels can be designed to EN 13445 or other standards on customer request.
From order to first brew
- Send us your site, capacity target and beer styles.
- We prepare a utility diagram and manufacturing drawings.
- We fabricate and test the system in our factory.
- We ship, then support installation and commissioning remotely and on site.
- After-sales: 5-year warranty on tanks, 1 year on auxiliary equipment, 3 months on wearing parts.

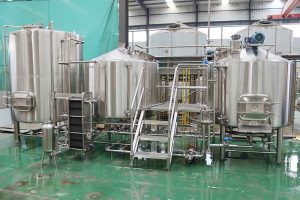

60BBL Brewing System
Previous slide Next slide Micet Craft’s 60bbl brewing system can be customized according to customer needs. Our design and manufacturing follow the local requirements that are more suitable for customers
50BBL Brewing System
Previous Next Micet Craft provides a 50bbl brewing system turnkey solution, we can customize the design of brewery equipment according to customer needs. Our design and manufacturing follow the local

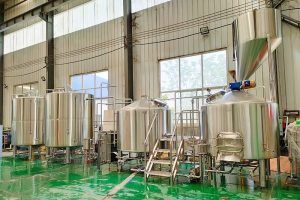

40BBL Brewing System
Previous slide Next slide Micet Craft is a manufacturer of high-quality brewing systems in China. We provide customers with high-quality brewery equipment and high-level services. We have extensive experience in

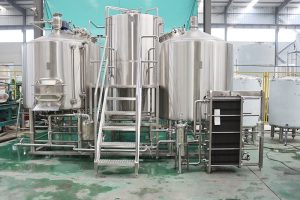

35BBL Brewing System
Previous Next 35bbl brewing system is commercial brewery equipment used to brew and ferment 35 barrels of beer. Micet Craft supports the customized design, we can provide turnkey brewery solutions

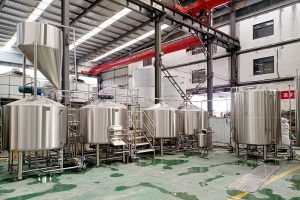

30BBL Brewing System
Previous slide Next slide The 30bbl brewing system is commercial brewery equipment used to brew and ferment 30 barrels of beer. It is made of certified 304/316 stainless steel through

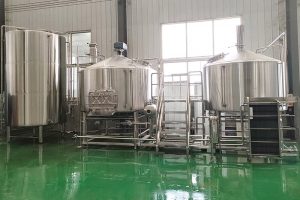

25BBL Brewing System
Previous slide Next slide The 25bbl brewing system is manufactured through a high-quality manufacturing process. We choose the sanitary welding process to weld the pipes and tanks, which can save

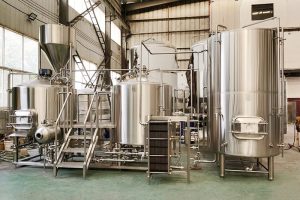

20BBL Brewing System
Slide HeadingLorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.Click HereSlide HeadingLorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit

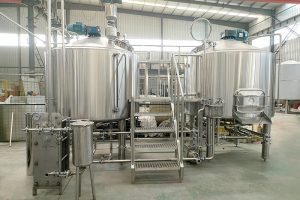

15BBL Brewing System
Previous Next Micet Craft’s 15bbl brewing system is manufactured through a high-quality manufacturing process. We use sanitary TIG welding technology to weld tanks and pipelines. 15bbl Brewing system is typically applied to

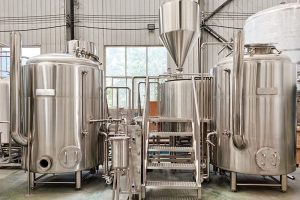

10BBL Brewing System
Previous slide Next slide Micet Craft’s 10bbl brewing system is a production-scale beer brewing system that can bring your craft beer to the market. If you plan a medium to

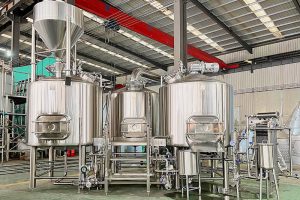

7BBL Brewing System
Previous slide Next slide The 7bbl brewing system provided by Micet Craft is used to brew 7 barrels of craft beer. This commercial brewery equipment uses food-grade 304/316 stainless steel
5BBL Brewing System
Previous slide Next slide 5bbl brewing system is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned. Such breweries are generally characterized by

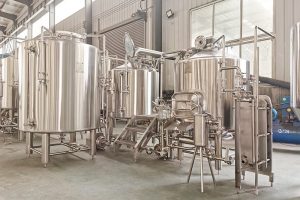

3.5BBL Brewing System
Previous slide Next slide The 3.5bbl brewing system is the best quality and most reliable brewing equipment on the market. These tanks are made of certified 304/316 stainless steel and
Beer Brewing System FAQ
Plan for the beer you expect to sell in two to three years. Many new brewpubs start at 5 to 10 BBL, regional breweries choose 15 to 25 BBL, and packaging breweries 30 BBL and above. We can leave space and connections for growth.
Tanks have a 5-year warranty, auxiliary equipment 1 year, and wearing parts 3 months. Every system is custom designed, checked on incoming materials, and pressure and water tested before shipment. We support installation remotely and on site.
Stainless steel is durable, easy to clean and food safe, which suits brewing. Sheet thickness matters because tanks must hold brewing pressure, so we specify thickness for each vessel and check incoming material with test reports.
Use an oxalic acid cleaner with a non-metallic pad, and avoid steel wool because it can leave iron particles that rust. Rinse and dry the surface; the oxygen in the air then rebuilds the protective passive layer.
The price depends on capacity, heating method, automation level and what is included. Send us your target batch size and site details and our engineers will prepare a quotation for your configuration.
