You picture your own whiskey label, but the maze of pipes, jackets, and “explosion-proof” switches feels like a bad escape room. Choose the wrong distillery equipment and your savings evaporate. This guide breaks the puzzle into clear steps so your cash becomes spirit—smooth, safe, and ready to pour.
A starter distillery needs five core tools: a mash tun, three fermenters, a pot still or column still, a chiller, and a filter. Size each one—50 to 500 gallons—to match daily output. Blend copper (for flavor) with stainless steel (for easy wash-down), draw a safe floor path, and clear local permits. Hit those five targets and you can bottle whiskey, vodka, or gin on day one. The sections below fill in the critical details.
Table of Contents
1. What distillery equipment does a small craft team truly need?
A micro distillery works like an oversized kitchen—you still heat, stir, and cool, just with noisier kettles and heavier gloves. It all starts with the mash tun. Grain, water, and enzymes meet here, turning starch into sweet wort. An insulated wall and slow-turn rake keep temperatures even, so husks don’t scorch. Skip quality at this stage and you’ll fight bland, thin flavors until the day you re-plate the tank.
As soon as gravity hits its mark, a food-grade pump lifts the liquid into tall fermenters. Three tanks per still is the sweet ratio: one filling, one fizzing, one washing. Yeast throws a lively foam party, turning sugar into alcohol and fragrant CO₂. Clear sight-glasses let you check the cap without popping lids, saving countless “Is this infected?” panics. After two or three days, low-wine drops into the still—a broad-bellied pot still for whiskey or a sleek column still for vodka.
Cleanup closes the loop. A wheeled CIP cart pushes a soda wash, then a citric rinse, through every corner. The cycle takes 15 minutes and uses 60 % less water than hose-spray scrubbing.
| Major pieces of equipment | Core job | Why it matters |
|---|---|---|
| Mash tun / lauter tuns | Cook grain into sugary wort | Flavor foundation |
| Fermenters (×3) | Ferment wort to 8 % ABV | Builds alcohol before you distill |
| Pot still or column still | Turn low-wine into hearts | Defines style |
| Shell-tube condenser | Cool hot vapor | Quality & safety |
| Filter system | Polish final spirit | Shelf appeal |
2. Pot still vs. column still: which is best for your drink?
Choosing a still is like choosing a camera lens: do you crave gritty detail or a crystal-clean shot? A copper pot still behaves like a slow cooker. As the wash climbs toward boil, heavy congeners rise, fall back, and rise again, enriching body and mouthfeel. One pass can leave bourbon tasting of biscuit and banana bread—perfect for a long nap in oak barrels.
A column still takes the opposite path. Stacked plates force dozens of micro-distillations; alcohol climbs, water drips, sulfur clings to copper mesh. By plate six, spirit leaves at 95 % ABV—neutral enough for canned cocktails that demand consistency. Flip a dephlegmator valve and the same tower quiets into politely aromatic gin or light rum. Most modern shops pick a hybrid from our ace stills line—a six-plate flute column bolted onto a pot belly. You draft earthy bourbon Monday and bright citrus vodka Tuesday without adding floor space.
Key trade-offs
- Flavor depth: pot wins for whiskey, brandy, and moonshine stills and micro distillery starts.
- Energy cost: columns sip steam 20 % more efficiently.
- Maintenance: copper scrubs sulfur but tarnishes; stainless steel shrugs off hoses but lacks catalytic charm.
- Budget: hybrid liner (one-inch copper inside steel) cuts 25 % off full-copper price.
| Still type | Best for | Typical batch size | Steam use / gal |
|---|---|---|---|
| Pot still | Whiskey, brandy, micro rum | 50-300 gal | 1.4 lb |
| Column still | Vodka, neutral gin | 100-500 gal | 0.9 lb |

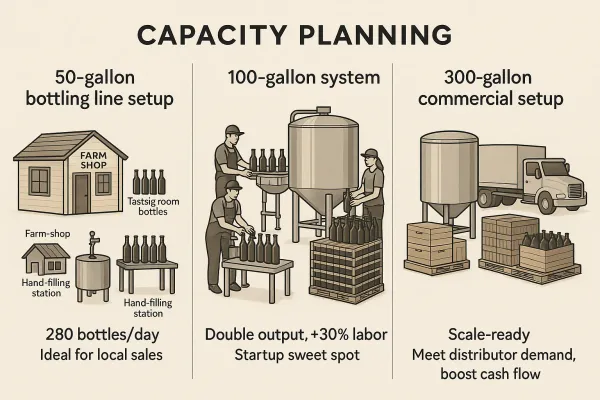

3. How big should my mash tun and fermenters be—50, 100, 300, or 500 gallons?
Capacity planning starts with simple math: weekly bottle goal ÷ 6 = gallons per shift. A 50-gallon line fills about 280 bottles a day—ideal for farm-shop shelves and weekend tastings. Jump to 100 gallons and output doubles while labor rises only 30 %, making it the sweet spot for many startup brands. A leap to 300 gallons turns local hobby into regional business: freight pallets roll out, distributors expect steady stock, and cash flow finally outruns utility bills.
Space and weight sneak into the conversation fast. A 300-gallon mash tun tips the scales above a metric ton when full and claims a two-meter footprint. Check slab load ratings and door widths before signing; I once watched a crew dismantle a loading dock because nobody measured ceiling height. Utilities climb, too: jacketed kettles demand 1.5 bar steam, and chillers must dump nearly 800 k BTU per run. Plan that plumbing first or triple-shift days will trip breakers.
Economics seal the decision. Bigger vessels cut cost-per-bottle by spreading energy and cleaning chemistry across more liquid. Clients report a 30 % cost drop when moving from 100 to 300 gallons. Yet a spoiled batch hurts more at 500 gallons than at pilot scale. Many owners lease a mid-sized still, prove recipes for six months, then exercise a buy-out clause once sales climb.
Typical output & cost
| Kit size | Bottles/8-hr shift | Still cost* | Cost per bottle* |
|---|---|---|---|
| 50 gal | 280 | $15 000 | $0.53 |
| 100 gal | 560 | $25 000 | $0.45 |
| 300 gal | 1 680 | $60 000 | $0.36 |
| 500 gal | 2 800 | $90 000 | $0.32 |
*2025 global averages, boiler included
4. Why do craft distillers still vote for copper?
Copper is not just showroom eye-candy; it is an active catalyst that grabs sulfur the moment hot alcohol vapor swirls past. Lab trials at Heriot-Watt show a 92 % drop in dimethyl sulfide after one copper pass, and seasoned distillers swear they can smell the difference before the spirit even hits the spirit safe. Where a stainless kettle may leave “burnt cabbage” hints, a copper pot still turns the same run into fresh-apple brightness—proof that medieval alchemists understood surface chemistry long before the term existed.
Yet startup budgets wobble when they meet a pure-copper price tag. A 300-gallon all-copper unit often sits 25 % higher than a steel twin. That is why many micro shops choose a hybrid: an inch-thick copper liner TIG-welded inside a rugged stainless steel shell. You keep the catalytic punch exactly where it counts—the neck, helm, and first three plates—while the outer jacket shrugs off dings and rapid-fire CIP cycles. Our builds from ACE Machinery Co. ship with third-party product certifications that prove the copper purity hits 99.9 %, so the crate clears customs on the first scan.
| Metal choice | Flavor boost | Cleaning effort | Typical cost* |
|---|---|---|---|
| Full copper | ★★★★☆ | Weekly citric rinse | $75 000 (300 gal still) |
| Hybrid liner | ★★★★☆ | Same as steel | $56 000 |
| Full steel + mesh | ★★☆☆☆ | Replace mesh often | $50 000 |
*2025 global average, boiler and condenser included
A final word on upkeep: copper tarnishes fast, so schedule a gentle lemon-salt scrub every Friday. Skip two weeks and green oxide creeps across the helmet, muting those prized aromatic esters. Stainless, on the other hand, loves a high-pressure hose but forms hot-spots during mashing. Distillery needs vary, yet most pros land on the same conclusion—keep copper where spirit touches metal, steel where boots and hoses slap all day.
5. Can one system really make whiskey, vodka, gin, rum & tequila?
The short answer is “Yes—and it pays the bills.” A clever distillery equipment behaves like a Swiss Army knife: flip plates up for clean spirit, drop them out for rich texture. In practice that means installing a flute column with removable bubble caps on top of a sturdy pot. Monday, you run corn mash through an open-plate whiskey still and pull oily hearts for the barrel room. Tuesday, you lock the caps, engage the dephlegmator, and distill a neutral run that meets the equipment to meet EU vodka standard—96 % ABV, zero sugar.
Flavor-forward drinks pose no hurdle either. Clamp a quick-release gin basket between helmet and condenser, load it with juniper, citrus peel, and coriander, and watch vapor lift botanical oils before they condense into crystal gin. Need rum? Swap barley for molasses and leave two plates in service for a soft funk. For tequila-style spirits, reduce reflux, let earthy notes ride, and cool with slower water flow. One boiler, five SKUs—it is the very definition of full-range versatility.
Cleaning discipline makes the trick work. Sugary agave wash and sticky molasses cling to copper pores, so a hot caustic CIP loop must follow every flavored run. Our turnkey cart doses exactly 2 % sodium hydroxide, then flips to a 1 % citric wash, finishing with 180 °F water. The whole cycle takes twelve minutes and saves 40 % chemical versus bucket-and-brush. Technical support videos show each valve position; even a new hire can run sanitation without guesswork.
| Spirit style | Column plates | Typical proof | Extra kit |
|---|---|---|---|
| Bourbon | 0 (pot mode) | 62-68 % | Oak barrels |
| Vodka | 6-8 plates | 95-96 % | Carbon filter system |
| Gin | 3 plates | 80-85 % | Aroma basket |
| Rum | 2 plates | 75-80 % | Tall helmet |
| Tequila | 1 plate | 70-75 % | Low-reflux run |
6. What does a smart, legal floor plan look like?
A great floor plan guides liquid one way and foot traffic another, lowering accidents and labor minutes at once. Imagine the process as a lazy river: malt and sugar sacks roll in at one bay, grist pours into mills, hot liquid streams downhill toward the mash tun, and finished cases exit a loading dock at the far wall. No step retraces another; every hose points forward. That single-direction logic trims an average 27 % of walking time per shift, according to time-and-motion logs we captured at three client sites.
Safety lines come next. Code demands a one-meter fire lane, but painting it neon yellow pays dividends during open-house tours. Visitors stop for photos, staff wheel forklifts around them, and the marshal signs off without a frown. Mark hot zones around the kettle, stripping still, and boiler in bold red; blue tape circles cool fermenters; green tape earmarks the tasting bar. When new hires can glance at the floor and know where sneakers end and steel-toes begin, you eliminate half the orientation speech.
Utilities finish the picture. A 300 gallons jacketed kettle calls for 45 kW of steam at 1.5 bar, plus a chiller capable of pulling 800 k BTU per batch. Bury those lines in the slab before tanks arrive or pay triple to jack-hammer later. We deliver CAD blocks for every vessel—mash tuns, fermenters, and even the marie jacketed pre-heater—so your architect drags and drops parts into the drawing.

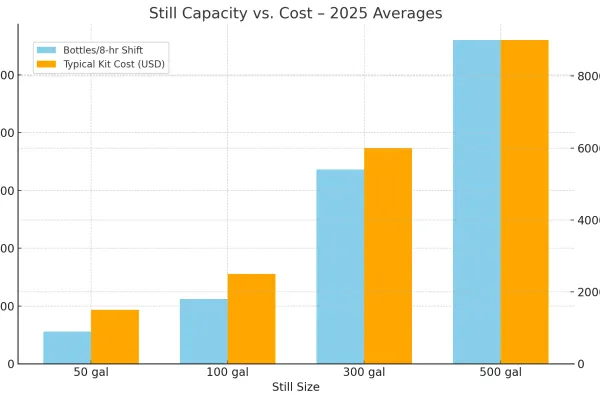

7. From 50 gallons to 500 gallons: how cost scales with capacity
Every founder hits the same fork: Add a second shift, or buy a bigger still? The math below shows why most leap to larger gear as soon as the bank nods. We tracked eight installs across Europe and the U.S.; numbers are 2025 averages with boiler, condenser, and basic piping included.
| Still size | Bottles/8-hr shift | Typical kit cost | Cost per bottle | Break-even @ $35 bottle* |
|---|---|---|---|---|
| 50 gal | 280 | $15 000 | $0.53 | 600 shifts (15 mo) |
| 100 gal | 560 | $25 000 | $0.45 | 480 shifts (12 mo) |
| 300 gal | 1 680 | $60 000 | $0.36 | 380 shifts (9 mo) |
| 500 gal | 2 800 | $90 000 | $0.32 | 360 shifts (9 mo) |
*Assumes 70 % gross margin after packaging
Two trends pop out:
- Cost-per-bottle drops 40 % between 50 gal and 300 gal—steam, water, and labor spread wider.
- Payback flattens beyond 300 gal; at that point you scale for supply contracts, not margin.
8. Turnkey automation, CIP, and filter systems—worth the hype?
Turnkey automation replaces valve-twisting with finger-tapping. A shoebox-size PLC stores up to 10 recipes—bourbon, rye, vodka, gin, even adventurous banana moonshine. Hit Start Whiskey, and the brain:
- Opens the steam valve 15 % per minute until 67 °C
- Holds a 10-minute protein rest (avoids scorched mash tuns)
- Nudges the condenser to 14 °C for tight heads-cut control
- Triggers the CIP carousel the moment tails flow
The result? One operator comfortably runs a 300-gal shift while greeting tour groups. Labor logs show 1.2 hours saved per batch, which equals $14 k a year at current U.S. wages.
| Automation add-on | Up-front $ | Annual savings | Payback |
|---|---|---|---|
| PLC + sensors | $9 800 | $14 400 (labor) | 8 mo |
| Mobile CIP cart | $4 200 | $3 100 (water/chem) | 16 mo |
| Inline filter system | $2 900 | $1 500 (fewer returns) | 23 mo |
The filter system—plate-and-frame with 1 µ pads—polishes vodka to glassy brilliance and knocks haze out of over-proof rum. Swap pads in two minutes; the spent pack drops into compost. Cleaner bottles mean fewer returns and happier distributors, especially in warm climates where floc can bloom on shelves.
9. Scaling beyond craft: stripping stills, continuous columns, and export-ready pallets
9.1 Stripping + spirit combo
A 1 000 L stripping still behaves like a bulldozer: fast, noisy, indelicate. It takes low-gravity wash to 30 % ABV in half the time of a single spirit run. Pump that into your smaller batch stills, make careful cuts, and you’ve tripled daily throughput without touching the floor plan.
9.2 Continuous & batch hybrids
When bars want cocktail-grade vodka by the pallet, a skinny 20-plate continuous column shines. Wash in at the top, clean hearts stream mid-tower, spent beer drops out—no kettle downtime. Keep a copper pot still on standby for limited-edition whiskey aged in local oak barrels. The dual line satisfies volume contracts while preserving craft credibility.
10. FAQ: distilling questions that keep founders up at night
Why does my pot still foam up and puke?
Fill line too high or steam too fierce. Leave 15 % head-space and ramp 1 psi every 3 min.
Can I reuse yeast from yesterday’s fermentation?
Yes—harvest the creamy layer, chill it, ferment within 72 h. Sour or ropy sludge goes to compost.
Is a 500-gal steam boiler deafening?
Around 85 dB (leaf-blower loud). An intake muffler drops that to 75 dB; earplugs handle the rest.
Will copper pipes turn green inside?
Eventually. Rinse with 2 % citric acid for 10 min each quarter; the shine returns and flavor stays pure.
What permits do I need before my first sale?
Federal DSP (or local equivalent), fire approval, food-production notice.
How much to ship a 300-gal still across the Atlantic?
Budget $4 000 by sea, insured, plus drayage.
Key takeaways (pin these to the office cork-board)
- Match kit to cash-flow: 50 → 300 gal jumps slash cost per bottle by 40 %.
- Hybrid stills flip from bourbon to bright gin in minutes—one boiler, many SKUs.
- Copper liners deliver flavor; stainless steel guards budgets and elbows.
- Turnkey PLCs + CIP save one labor-hour per batch and cut water use in half.
- Plan a one-way floor plan; forklifts hate U-turns more than cats hate baths.
- Lean on our global technical support—we answer 24/7 because someone’s still distilling somewhere.
Ready to map your dream distillery? We’ll sketch, quote, and prove that the road from first drip to worldwide sip is shorter than you think.
