As the high-end spirits market continues to expand, more and more distilleries are beginning to focus on the specialization, automation, and modularization of production equipment. Whether you are a newly started craft brewery or a medium-sized spirits brand expanding production, choosing the right distilling machinery and equipment will directly affect the product flavor, production efficiency, and the brand’s future.
Distillery machinery overview

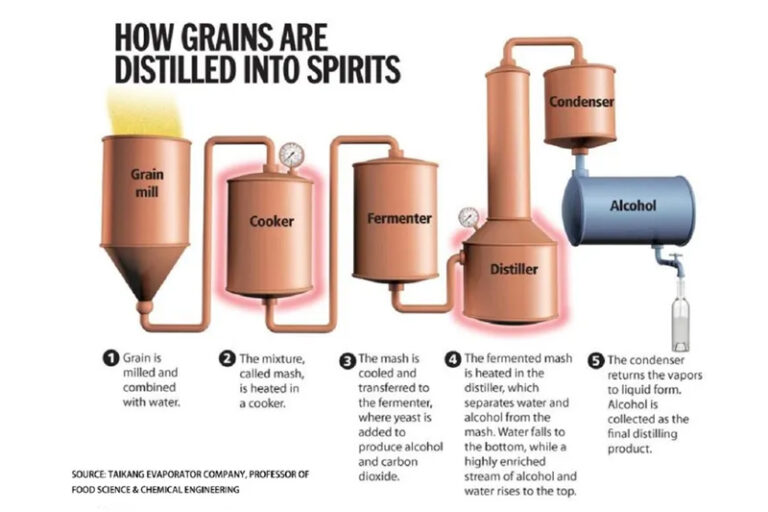

Distillation is a key process in the production of spirits such as whiskey, rum, vodka, and gin. The right distillery machinery is essential to ensure the highest quality of the final product. This guide will explore the various types of distilling machines, focusing on temperature control, materials used, fermentation processes, and flavor control. We will go through each step of the distillation process, from raw materials to bottling.
Working principle of distillation equipment
Distillation is a process that uses the different boiling points of liquids to separate components. Distillation equipment heats fermented liquids to separate different components, thereby purifying alcohol or other essential substances. The core distillation equipment usually includes boilers, condensers, tower distillers, etc. Understanding the principle of distillation is the first step in purchasing equipment.
Key components of distillation machinery
Raw material processing system
- Stainless steel grinder: Double roller adjustable pitch design supports different coarseness and fineness adjustments to keep the malt structure intact and avoid turbidity caused by excessive grinding.
- Automatic conveying system: Cooperate with the feeding screw conveyor to realize closed conveying from the raw material warehouse to the brewhousetank to reduce the risk of contamination.
All equipment is made of 304/316L food-grade stainless steel, which is corrosion-resistant, easy to clean, and meets HACCP and GMP standards.
Brewhouse system and fermentation system
- Mash Tun:built-in steam jacket, three-stage temperature control system, with automatic stirring paddle to ensure uniform mash.
- Fermentation Tank:equipped with variable frequency temperature control, foam control valve, CO₂ release valve, with online Brix (sugar content) and pH monitoring interface.
- Insulation system: The entire insulation system uses a high-density polyurethane layer, with a digital temperature controller, and supports custom fermentation curves.

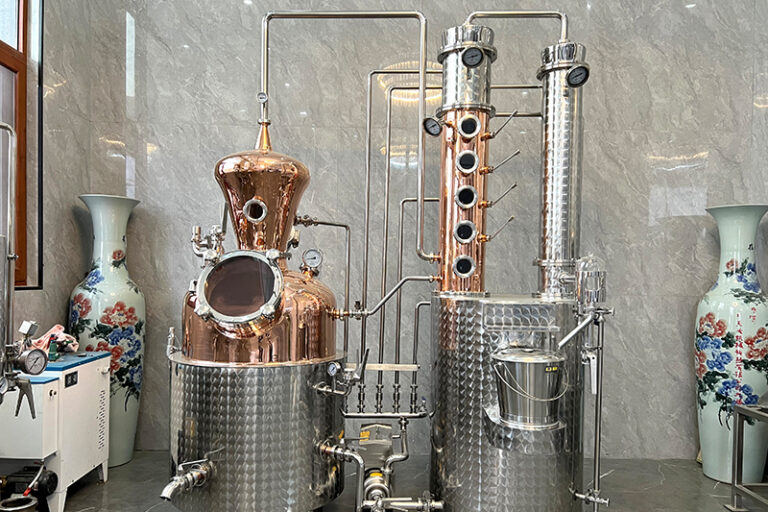

Distillation system
- Pot Still:suitable for traditional distillation styles such as whiskey and rum, equipped with a visual mirror, liquid level meter, temperature control probe, and process visualization.
- Column Still: supports multi-stage fractionation, each tower has independent temperature control and liquid reflux control, suitable for high-purity liquor or vodka.
Filtration and storage system
- Filtration system: multi-stage plate filtration + activated carbon filtration, with stainless steel pressure tank, to ensure that no metal ions are released before and after filtration.
- Storage tank: horizontal or vertical structure optional, equipped with a breathing valve, temperature probe, CIP cleaning ball, and support for single batch or batch mixed storage.
Filling system
- Semi-automatic/fully automatic filling line:flow control accuracy can reach ±1%, supporting transparent bottle/brown bottle/special-shaped bottle switching.
- Labeling system: can be matched with hot melt adhesive or self-adhesive system, adapt to multi-language labeling requirements, and comply with export regulations.
- Bottle cap sealing device:compatible with screw capping, film sealing, and wax sealing, providing a variety of brand presentation methods.

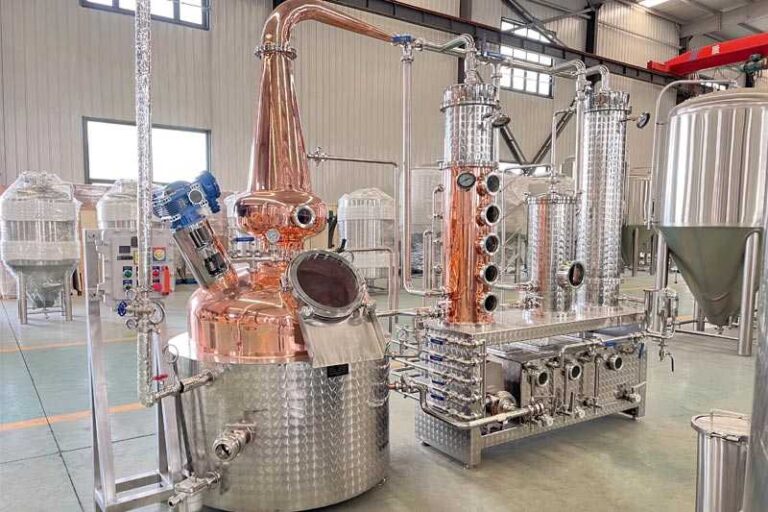

Different types of distillation equipment
Device Type | describe | Applicable scenarios | Pros and Cons |
Single still | The alcohol is extracted by a single heating and condensation process, common in traditional small-scale production. | Microbrewery or laboratory | Advantages: traditional handmade flavor, simple equipment; Disadvantages: low output and low efficiency. |
Continuous distillation equipment | Continuous heating and condensing, suitable for large-scale production, can continuously extract alcohol. | Large wineries or high-volume production needs | Advantages: High efficiency, suitable for large-scale production; Disadvantages: complex equipment and high initial investment. |
Column still | The alcohol is extracted layer by layer through a tower-like structure, which enables fine control of the evaporation and condensation of each component. | High-end wine production with efficient purification and fine control | Advantages: Flavor and alcohol concentration can be precisely controlled; Disadvantages: complex structure, large space occupied and high cost. |
Steam distiller | Using steam heating, it is suitable for extracting essential oils or special ingredients, such as distillation of flowers, herbs, etc. | Special alcohol or essential oil extraction | Advantages: more flavor components can be extracted; Disadvantages: not suitable for large-scale alcohol distillation and has low efficiency. |
Vacuum distiller | Distillation under low pressure can extract alcohol or essence at low temperature and avoid the destruction of flavor by high temperature. | High-end wine production, high demand for flavor control | Advantages: Low-temperature distillation retains more delicate flavors; Disadvantages: complex equipment, high cost and high energy consumption. |
Importance of Temperature Control in Distillation
Maintaining optimal temperature is essential throughout the distillation process. A precise temperature control system helps to:
- Ensure high quality of spirits: If the temperature is too high, it will cause an unpleasant taste; if the temperature is too low, the alcohol extraction efficiency will be low.
- Prevent contamination: Excessive heating can cause chemical reactions, produce off-flavors, and affect the taste and aroma of the final product.
- Increase yield: Proper temperature management maximizes distillation efficiency, ensuring a higher yield of pure alcohol.
How to choose the right distillation equipment
Clearly define the distillation goals and requirements
- Distillation goals: Different distillation goals require different types of equipment. For example, distilled alcohol (such as whiskey, liquor) and essential oil extraction have different requirements for equipment.
- Production scale: Determine your production volume, whether it is for small-scale laboratory use or large-scale industrial production. For small-scale production, you can choose laboratory-level equipment; for large-scale production, you need equipment with larger capacity.
- Product characteristics: Different materials have different distillation requirements, such as high alcohol content, low volatile substances, or high-concentration extracts, which require the equipment to consider corresponding temperature control and pressure control when designing.
Temperature Control System
Temperature control is one of the core elements in the distillation process, especially for delicate distillation processes that require precise temperature control. For example, when distilling wine, the temperature must be controlled within a certain range to ensure that different components can be accurately separated.
Material selection
- Stainless steel: Stainless steel is the most commonly used material with good corrosion resistance, high temperature resistance, and cleanliness, making it very suitable for distillation equipment.
- Copper:Copper distillation equipment is often used for alcohol distillation because of its excellent thermal conductivity and chemical reaction with alcohol, which can give alcohol a richer flavor.
Fermentation and Flavor
For the production of distilled spirits, it is very important to control the fermentation process and flavor. When choosing equipment, you should consider: Choose a distillation column with an appropriate number of columns to ensure good fractionation and remove unnecessary impurities. For fine flavor control, it is very important to choose a condensation system to maintain the flavor substances.
Automatic control system
- Temperature control: Precisely control the temperature of heaters and coolers.
- Flow control: Control the flow of liquid and steam according to distillation needs.
- Data monitoring: Real-time monitoring of the distillation process and collection of data for later optimization of the production process.
Budget and Investment
- Initial Investment: High-end equipment may require a larger initial investment, but will generally provide better returns in terms of quality control, energy efficiency, and production efficiency.
- Operating Costs: Consider the maintenance, energy consumption, and operating costs of the equipment. Choosing equipment with higher energy efficiency will reduce long-term operating costs.
- Upgrade and Scalability: Ensure that the selected equipment can be upgraded or expanded as production needs change.
Suppliers and Technical Support
It is very important to choose equipment suppliers with good technical support and after-sales service. Especially when encountering equipment failure or production problems, timely technical support can reduce production stagnation and losses.
FAQ
What types of wine can distillation equipment be used to brew?
It is suitable for whiskey, brandy, vodka, gin, rum, sake, Chinese medicinal wine, essential oil extraction, fuel ethanol, etc. Different types of alcohol products can be produced according to different configurations.
How to control the flavor of the wine during the distillation process?
Flavor control mainly depends on the heating speed, tower section height, reflux ratio, temperature control accuracy, and the mastery of the wine receiving time node. The design of the equipment itself also plays a key role.
What are the heating methods of distillation equipment?
Common heating methods include electric heating, steam heating, and direct fire heating. Steam heating is recommended for industrial scale, which has uniform temperature rise and strong controllability; small equipment can choose electric heating, which is easy to install.
Can an automated distillation operation be achieved?
Yes, modern distillation systems can be equipped with PLC control systems to achieve automatic adjustment of temperature, pressure, and reflux rate, and perform batch records and abnormal alarms to improve production efficiency and safety.
How to choose distillation equipment suitable for the scale of my winery?
It depends on daily output, number of distillations, type of alcohol, and target flavor. Small wineries are recommended to use 100L-500L equipment, medium-sized wineries are recommended to use 1000L or more, and large industrial projects require customized 5000L and above systems.
