Are inconsistent fermentation results causing wasted batches and lost profits? Stop letting low-quality vessels ruin your brew—choose proven, professional fermentation solutions designed for lasting results.
A fermentation vessel is a specialized container designed to ferment wort into beer, cider, or other beverages by supporting the entire fermentation process under sanitary and controlled conditions. The best fermentation vessels, whether for craft breweries or home brewing, are made of food-grade, sanitary materials and feature tight-sealing lids, cooling jackets, and easy-clean valves for superior quality and consistency.
What Is a Fermentation Vessel?
A fermentation vessel—sometimes called a fermenter, FV, or carboy—is any container designed to hold wort or must as it ferments into beer, wine, cider, kombucha, or other fermented beverages. In brewing, these vessels range from small glass jars and 5-gallon buckets for home brewing to advanced 30-bbl cylindroconical tanks for craft beer production.
“Almost anything that can hold liquid” was historically used as a fermentation vessel—from wooden barrels to clay crocks and even gallon food jars. But for modern breweries, the vessel must ensure food grade safety, maintain sanitary conditions, and support precise process control.
Key Functions of Fermentation Vessels:
- Provide a sealed, sanitary environment for primary fermentation
- Allow for CO₂ escape via airlock or blow-off tube
- Prevent contamination and off-flavors
- Facilitate sediment (trub) settling and easy racking
- Support temperature control via insulation or cooling jackets
See also: Craft Beer Brewing Equipment
How Does the Fermentation Process Work in Brewing?
The fermentation process begins as soon as cooled wort is transferred to the vessel and yeast is pitched. The yeast begins to metabolize the sugars, releasing alcohol, CO₂, and a spectrum of aromatic compounds.
Step-by-step:
- Transfer: Wort is held in the vessel as it ferments. Home brewers may use a 6.5-gallon carboy or a 7.9-gallon bucket; breweries use fermenters from 1 bbl to 30 bbl or more.
- Sealing: A tight lid and airlock (or blow-off valve) protect the liquid, letting CO₂ out but keeping contaminants away.
- Primary Fermentation: Lasts from 3 days to 3 weeks, depending on the beer style, yeast strain, and temperature. This is where most sugars are converted into alcohol and ketone/ester compounds.
- Secondary Fermentation/Lagering: Some brewers rack beer into another vessel (to eliminate the need to move beer while in process), while many modern setups allow lagering and maturation in the same tank.
Why does vessel design matter?
Fermentation takes time, and stability of the beer is directly influenced by vessel shape, material, and temperature control. The right vessel eliminates off-flavors, improves production economy, and gives the brewer more control.
| Stage | Vessel Type Example | Typical Duration |
|---|---|---|
| Primary | Stainless conical, carboy | 3-14 days |
| Secondary/Lagering | Cylindroconical, jar | 1-6 weeks |
“For craft breweries, using jacketed stainless steel fermentation tanks can dramatically improve beer quality by keeping yeast in the optimum range.”
Further Reading: Beer Fermenter Tank
Key Features of Modern Fermentation Vessels
Today’s best fermenters—whether for nano breweries, craft beer, cider, or kombucha—are a blend of tradition and high-tech engineering. Let’s break down the features that truly matter:
1. Sanitary Design
- Food grade, made of stainless steel or specially formulated glass/plastic
- Smooth welds and interior for easy cleaning (sanitization is essential!)
- CIP (Clean-in-Place) compatibility for professional setups
2. Advanced Temperature Control
- Integrated cooling jackets (glycol-compatible) for precise fermentation process control
- Insulation to maintain batch stability
- Optional built-in refrigeration for smaller vessels
3. Functional Ports & Valves
- Sampling valve for quick wort or beer quality checks
- Racking valve for transferring clear liquid off sediment
- Harvest valve for collecting yeast after fermentation
- Blow-off or airlock port for safe CO₂ release
4. Lid and Sealing System
- Airtight, easy-to-open lid with gasket to prevent leaks and contamination
- Some fermenters have clamp-on or screw-top lids for extra security
Feature Table:
| Feature | Purpose / Benefit |
|---|---|
| Stainless steel body | Sanitary, easy to clean, made of stainless steel |
| Conical bottom | Collects sediment, makes racking easy |
| Glycol cooling jacket | Keeps temperature in optimal fermentation range |
| Sample/rack/harvest valves | Control & monitor every batch |
| Tight-seal lid | Prevents oxygen ingress, protects against infection |
Pro Tip: A well-designed fermenter can eliminate the need to move beer while in process, saving labor and reducing contamination risks.
See: Stainless Steel Conical Fermenter
Stainless Steel vs. Glass vs. Plastic: Which Vessel Is Best?
Selecting the right fermentation vessel material can impact every batch. Here’s how the three most common options stack up:
- Pros: Industry standard for breweries; extremely durable, easy to sanitize, supports advanced features (cooling jackets, multiple valves, CIP).
- Cons: Higher upfront cost; heavy.
- Common uses: All scales—from nano breweries to major production. Required for sanitary production of consistent, high-quality beer styles.
Glass Carboys & Gallon Glass Jars
- Pros: Inert, non-reactive, lets you watch fermentation, ideal for home brew and small batch experiments.
- Cons: Fragile, heavy, can be hazardous if dropped, limited port/valve options.
- Popular sizes: 5-gallon, 6-gallon, 6.5-gallon glass carboys.
Plastic Buckets and Jars
- Pros: Light, affordable, easy to modify (drill ports), good for beginners and short fermentation times.
- Cons: Scratches harbor bacteria, need regular replacement, not suitable for long-term aging or repitching yeast.
- Other uses: Food fermentation (kimchi, sauerkraut) and gallon food jars.
| Material | Pros | Cons | Typical Use Cases |
|---|---|---|---|
| Stainless Steel | Sanitary, durable, customizable | Expensive, heavy | Breweries, pros |
| Glass | Inert, clear, easy to clean | Breakable, heavy, limited valves | Homebrew, small batch |
| Plastic | Cheap, light, easy to use | Scratches, not as sanitary | Beginners, food ferments |
Tip: Glass and plastic are “varied over time” in popularity, but stainless steel remains the highest quality choice for professional brewing.
Explore: Micro Beer Brewing Equipment
Why Temperature Control Matters: The Role of Cooling Jackets
Temperature swings are one of the main causes of off-flavors, stuck fermentations, or failed batches.
Modern fermentation vessels use cooling jackets or integrated glycol systems to maintain perfect temperature.
Why it matters:
- Keeps yeast in the optimal range for flavor, attenuation, and alcohol production
- Reduces formation of ketones, esters, and unwanted phenolics
- Consistent batch quality and repeatability
| Method | Used In | Effect |
|---|---|---|
| Glycol cooling jacket | Stainless tanks | Rapid, precise control |
| Insulated crock/jar | Small scale | Slower, less accurate |
| Dedicated refrigeration | Lab/experiments | Best for small glass vessels |
Quote:
“Our 10bbl stainless steel fermentation tanks with glycol cooling jackets help us produce craft beer of consistent quality even in hot climates.” — Startup Brewery Owner
Learn more: Nano Brewery Equipment
Choosing the Right Size: From Carboys to BBL Tanks
The ideal fermentation vessel size depends on your production needs, available space, and batch goals.
Common Fermentation Vessel Sizes
- Home Brew: 5-gallon plastic buckets, 6.5-gallon glass carboys, 7.9-gallon buckets—perfect for beginners or test batches.
- Pilot and Nano Breweries: Vessels from 100L (about 26 gallons) up to 1000L (about 264 gallons). Nano breweries often choose several small tanks for flexibility.
- Craft Breweries: Standard sizes include 5 bbl, 10 bbl, 20 bbl, and up. Large systems can run multiple batches at once for efficiency and flexibility.
- Cider, Kombucha, Distilling: Fermentation vessels are also used in the production of cider, kombucha, and distilled spirits, requiring batch-specific designs.
| Capacity | Typical Use | Example Product |
|---|---|---|
| 5-7.9 gallon | Home brew | Glass carboy, bucket |
| 100–300 liter | Nano brewery, test batch | Stainless fermenter |
| 5–30 bbl | Craft brewery, main production | Conical fermenter |
| 1000+ liter | Cider, wine, spirits | Horizontal/vertical tanks |
Tip: For better space utilization and production economy, many breweries use a mix of large and small fermenters for maximum flexibility.
Further Reading: Small Brewery Equipment | Micro Brewery Equipment
How Vessel Shape Affects Fermentation Quality
Shape isn’t just aesthetic—it plays a key role in sediment management, yeast health, and beer clarity.

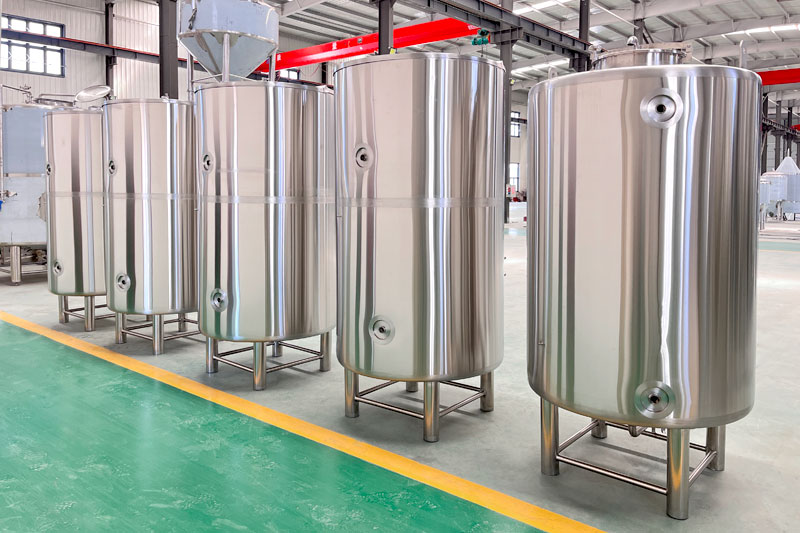

- Cylindrical Tanks: Used in traditional lagering; often found in older or budget setups.

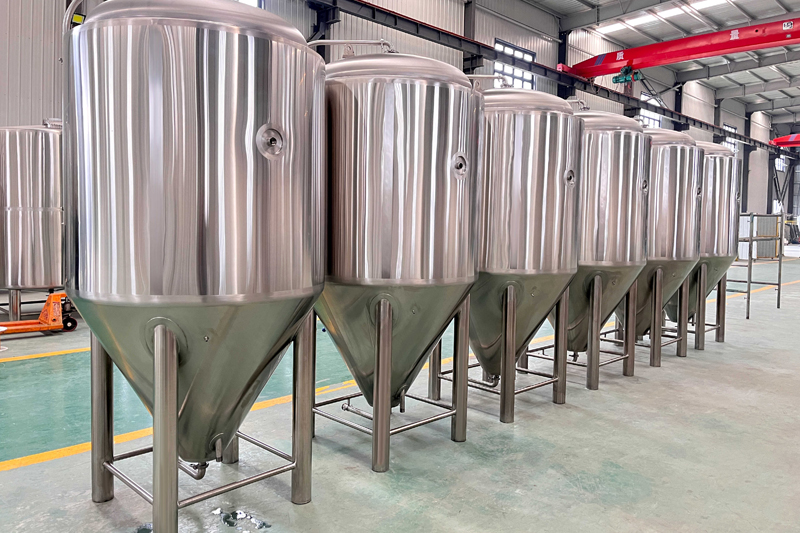

- Conical and Cylindroconical Tanks: Today’s professional breweries almost universally use these. The conical bottom collects yeast, trub, and sediment, allowing for easy harvest and racking. This means brewers can eliminate the need to move beer while in process—improving stability of the beer, reducing oxygen pickup, and ensuring sanitary transfers.
- Other Shapes: For specialty ferments (sours, farmhouse ales), some brewers still use open fermenters, crocks, or even amphorae to influence flavor via increased surface contact or oxygen exposure.
| Shape | Key Benefit | Typical Use |
|---|---|---|
| Conical | Easy yeast harvest, racking | Most pro breweries |
| Cylindrical | Simpler build, lower cost | Home brew, lagering |
| Open/Amphora | Unique flavors, historic technique | Sours, specialty brews |
| Crock | Kimchi, traditional ferments | Food fermentation |
Did you know? Many modern fermenters also offer an adjustable headspace lid, allowing you to tailor the tank volume for different batch sizes.
Read More: Stainless Conical Fermenter
Cleaning and Sanitizing Your Fermenter
Sanitization is the single most important task for any brewer.
Even trace residue or bacteria can cause off-flavors, stuck fermentation, or ruin a batch.
Best Practices:
- Rinse thoroughly: After each use, rinse the vessel, valves, lid, airlock, and all attachments with hot water.
- Food grade sanitizer: Use peracetic acid, iodophor, or other brewery-approved chemicals to eliminate bacteria and wild yeast.
- CIP Systems: In large stainless fermenters, Clean-in-Place spray balls make deep cleaning fast and efficient.
- Manual scrubbing: For glass carboys or buckets, use a soft brush. Avoid scratching plastics.
| Step | Tool/Method | Pro Tip |
|---|---|---|
| Rinse | Hot water, sprayer | Dislodge visible residue |
| Sanitize | CIP, sanitizer | Focus on all seals/valves |
| Inspect | Visual + sniff test | Catch hidden contamination |
Important:
Never skip the cleaning step, even between similar beer styles or consecutive batches. Residue and sediment build-up increase risk with each batch.
Common Problems with Fermentation Vessels and How to Fix Them
1. Leaks and Valve Issues
- Cause: Damaged gaskets, faulty lid or valve.
- Solution: Replace with new, sanitary-grade parts. Regularly check for wear.
2. Sediment and Off-Flavors
- Cause: Poor sediment removal or improper vessel shape.
- Solution: Use conical fermenters, proper racking techniques, and avoid disturbing the trub.
3. Temperature Swings
- Cause: Lack of insulation or unreliable cooling jackets.
- Solution: Upgrade to glycol jackets or invest in dedicated refrigeration.
4. Contamination
- Cause: Inadequate cleaning or scratched plastic.
- Solution: Sanitize thoroughly; replace old, scratched vessels or parts.
| Problem | Quick Fix |
|---|---|
| Leaky valve | Replace gasket/valve |
| Blow-off | Install blow-off tube, monitor |
| Wild yeast/bacteria | Deep clean, sanitize |
| Difficult harvest | Use conical/cylindroconical |
| “Strange” flavors | Improve cleaning, temp control |
For More Info: Micro Brewery Setup
How to Select the Best Fermentation Vessel Supplier
Selecting a reliable supplier ensures the highest quality, longevity, and service for your brewery or beverage business.
What to Look For:
- Fabrication Quality: Are vessels made of stainless steel, food grade plastic, or glass? Are welds sanitary and smooth?
- Customization: Can you order unique sizes, custom ports, lids, jackets, or special features?
- Certifications: Does the supplier provide sanitary certificates, test reports, or international standards (e.g., CE, ISO)?
- Technical Support: Do they offer global support, spare parts, installation guides, and help with upgrades?
- References: Do other breweries, cideries, or kombucha brands trust their equipment?
| Supplier Factor | Why It Matters |
|---|---|
| Quality fabrication | Impacts longevity, reliability |
| Customization options | Fits your space, process, and workflow |
| Certifications | Guarantees food safety, import approval |
| Service/Spare parts | Keeps downtime low, boosts ROI |
| Global references | Shows experience and trust |
“Our production economy and space utilization improved dramatically after upgrading to cylindroconical tanks from a reputable manufacturer.” — Experienced Brewmaster
See More: Craft Brewery Equipment
Case Study: From Kimchi Crocks to Stainless Steel Tanks
History Snapshot:
Fermentation vessels have varied over time, from simple crocks and amphorae to modern stainless tanks. Korean kimchi and sauerkraut were once fermented in ceramic jars—prized for their ability to keep food at steady temperatures. Today’s beer and kombucha producers need more: better sanitization, temperature control, and scalability.
Example:
A growing kombucha business started with gallon glass jars and crocks. When scaling up, they switched to jacketed stainless steel kombucha fermenters. Results: process times were cut in half, batch consistency rose, and product shelf life improved.
Explore: Kombucha Brewing Vessel
Trends: The Evolution of Fermentation Vessel Fabrication
- Automation: Modern fermentation tanks now support automated temperature, pressure, and cleaning cycles, minimizing manual labor and human error.
- Hybrid Fermenters: Some breweries use dual-purpose tanks for both primary fermentation and maturation, saving space and eliminating the need to move beer between vessels.
- Smart Valves and Sensors: Real-time monitoring of temperature, pressure, and gravity, improving batch repeatability and beer quality.
- Sustainability: New designs use less water, lower cleaning chemical needs, and recycle cooling liquid for efficiency.
| Innovation | Impact |
|---|---|
| Smart sensors | Improved process monitoring |
| Integrated CIP | Faster, safer cleaning |
| Hybrid vessel design | Greater flexibility, less equipment cost |
Further Reading: Brewing Equipment
Frequently Asked Questions
What’s the difference between primary and secondary fermentation?
Primary fermentation happens first—yeast converts most sugars into alcohol. Secondary fermentation is a conditioning phase (in the same or different vessel) to refine flavors, drop sediment, and clarify the beer.
Can I use fermenters for things other than beer?
Absolutely! Cider, wine, kombucha, kimchi, sauerkraut, and even enzyme and alcohol production all use fermenting vessels. Just ensure the vessel is food grade and properly sanitized between uses.
How do I harvest yeast from my fermenter?
If using a conical fermenter, open the harvest valve at the bottom after primary fermentation. The sediment and yeast will collect here, making repitching or disposal easy.
What is the best way to avoid off-flavors?
Control fermentation temperature, use sanitary procedures, and avoid moving beer unless absolutely necessary. Remove sediment as needed, and always use food-grade, clean vessels.
How many liters is a 5-gallon batch?
A 5-gallon batch is about 19 liters. Most home brew recipes use this size as a standard, but professional breweries scale up to hundreds or thousands of liters per batch.
What is the function of a blow-off tube?
A blow-off tube allows CO₂ and foam to escape during vigorous fermentation, preventing pressure build-up and mess.
Glossary of Terms
| Term | Meaning/Use |
|---|---|
| Carboy | Large glass vessel for fermentation |
| Conical | Fermenter shape for sediment collection |
| Gallon glass | Glass fermenters in standard US homebrew sizes |
| Airlock | Valve letting CO₂ escape, blocks contaminants |
| Jacket | External cooling/heating layer on vessel |
| BBL | Barrel (approx 117 liters/31 US gallons) |
| CIP | Clean-In-Place; system for automatic vessel cleaning |
| Racking | Transferring clear beer off sediment/trub |
| Trub | Sediment from yeast, hops, proteins at vessel bottom |
| Repitching | Re-using yeast from a previous batch |
Key Takeaways
- Fermentation vessels—from simple carboys to advanced jacketed tanks—are critical for brewing, cider, kombucha, and more.
- Material, shape, and size all impact fermentation quality, process times, and beer stability.
- Stainless steel conical fermenters with glycol cooling jackets are the professional standard.
- Cleaning, sanitization, and careful temperature control eliminate off-flavors and support batch repeatability.
- Modern vessels offer advanced features, smart valves, and sustainability benefits.
- Choose a reputable supplier with global support, customization, and proven fabrication quality.
Ready to take your brewing to the next level?
Contact our factory for custom fermentation vessel solutions, technical support, and scalable systems for every batch size.
