Brewhouse Equipment Manufacturer: 2, 3 and 4 Vessel Brewhouses
Brewhouse equipment is the hot side of a brewery: the vessels where milled malt is mashed, the wort is separated from the grain, boiled with hops and clarified before it goes to the fermentation tanks. Micet Craft designs and builds custom 2-vessel, 3-vessel and 4-vessel stainless steel brewhouses from 1 to 100 BBL in our own 10,000+ m² production base in Jinan, China, with 16 years of experience and more than 1,000 breweries served.
Brewhouse Configurations at a Glance
| Configuration | Vessels | Best for |
|---|---|---|
| 2-vessel brewhouse | Mash/lauter tun and kettle/whirlpool | Brewpubs and small breweries that want a compact, lower-cost system |
| 3-vessel brewhouse | Mash tun, lauter tun, kettle/whirlpool | Breweries that want a separate lauter tun for better wort separation |
| 4-vessel brewhouse | Mash tun, lauter tun, kettle, whirlpool | Higher output: a new brew can start while the previous one is still boiling |
Every brewhouse supports infusion and decoction mashing and can be heated by electricity, steam or direct fire. The catalog below shows typical models; shipped equipment is always modified to each customer’s customization requirements.
Brewhouse Sizes: BBL to Litres
| Batch size | Approx. litres | Typical use |
|---|---|---|
| 1-3.5 BBL | 117-410 L | Pilot, R&D and nano breweries |
| 5-10 BBL | 590-1,170 L | Brewpubs and taprooms |
| 15-30 BBL | 1,760-3,520 L | Regional and packaging breweries |
| 50-100 BBL | 5,870-11,730 L | Large production breweries |
The brewhouse is only one part of the plant. We also supply fermentation tanks and bright tanks, and can deliver a full turnkey beer brewing system or complete brewery equipment package.
400L brewhouse equipment
Previous slide Next slide The 400l brewhouse Equipment can produce 400l batches of beer and can brew 1-4 batches per day depending on the container configuration. At the heart of
2500L Brewhouse Equipment
Previous slide Next slide The 2500l brewhouse equipment can produce 2500l batches of beer and can brew 1-4 batches per day depending on the vessel configuration. At the heart of
1000L Brewhouse
Previous slide Next slide The 1000l brewhouse Equipment can produce 1000l batches of beer and can brew 1-4 batches per day depending on the container configuration. At the heart of
500L Brewhouse
Previous slide Next slide The 500l brewhouse can produce 500l batches of beer and can brew 1-4 batches per day depending on the vessel configuration. At the heart of any

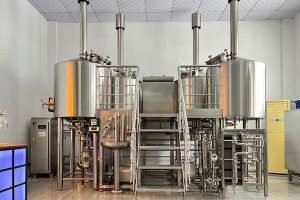

300L Automated Brewhouse
Previous Next The 300l brewhouse is ideal for nano breweries. We provide 2 vessel, 3 vessel, and 4 vessel configurations for a 300l brewhouse. The brewhouse equipment in the picture

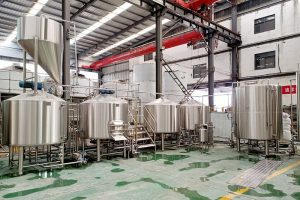

30BBL Brewhouse
Previous slide Next slide The 30BBL Brewhouse made by Micet Craft is a popular choice for brewers who are ready to start a brewery. It is configured with many vessels

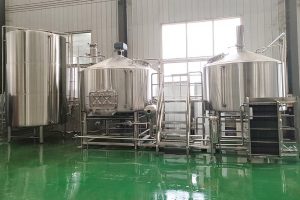

25BBL Brewhouse
Previous Next The Brewhouse is where the brewer obtains the wort by mashing, filtering, boiling, and whirlpool. It plays an important role in a craft brewery. The 25BBL Brewhouse manufactured

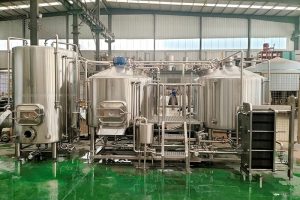

20BBL Brewhouse
Previous Next Micet Craft’s 20BBL Brewhouse is the best brewing system for large-scale commercial brewing. We can provide 20BBL Brewhouse with 2 vessels, 3 vessels, 4 vessels, and many container

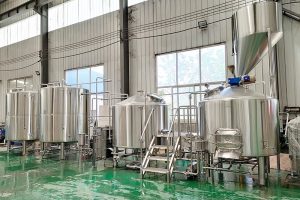

15BBL Brewhouse
Previous slide Next slide 15BBL Brewhouse trial and brew ale or lager. The 15BBL Brewhouse manufactured by Micet Craft can provide you with a turnkey solution. It can help you

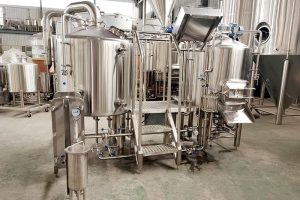

2BBL Brewhouse
Previous slide Next slide The 2BBL Brewhouse produced by Micet Craft is a set of professional brewery equipment used by Brewpub to produce “live beer”. Master brewers can brew beer
7BBL Brewhouse
Previous slide Next slide Micet Craft’s 7BBL brewhouse is the best choice for medium-sized beer pubs. This automatic brewing system has the greatest production flexibility. You can brew beer as
10BBL Brewhouse
Previous slide Next slide Micet craft’s 10bbl brewhouse is an automated brewing system with a production scale. It can help you complete the commercial brewing business of beer. If you
Brewhouse Equipment FAQ
Brewhouse equipment is the set of vessels used to turn malt, water and hops into wort: a mash tun, a lauter (filter) tun, a boiling kettle and a whirlpool. Some designs combine functions into 2 or 3 vessels. In a brewery, the word refers to this equipment and the room that holds it, not to a bar or restaurant.
A 2-vessel brewhouse is compact and economical for brewpubs. A 3-vessel brewhouse adds a separate lauter tun for better wort separation. A 4-vessel brewhouse separates all four functions so a second brew can start while the first one boils, which raises daily output. Tell us your target batch size and brews per day and our engineers will recommend a layout.
Consider your site, budget, local building codes, and the price of electricity, gas or steam in your area. Electric heating usually suits small brewhouses, while larger plants often use steam that can serve other processes. Direct fire is also possible. Our article Brewhouse heating options: Electric vs Steam vs Direct Fire compares them.
Price depends on capacity, heating method and the number of vessels. As a reference, a 500 L stainless steel 2-vessel brewhouse costs about $15,000 and a 5,000 L stainless steel 4-vessel brewhouse about $100,000. These are approximate figures; contact us for an exact quotation for your configuration.
Tanks have a 5-year warranty, auxiliary equipment 1 year, and wearing parts 3 months. We use food-grade 304/316 stainless steel, check incoming material, run a 48-hour water test on the equipment before shipment, and can provide the test report.
Yes. We support installation both remotely and on site, and provide process and utility diagrams and manufacturing drawings before production.
A brewery is the whole building or company that produces beer. The brewhouse is the equipment, and the room, where wort is made; fermentation and bright tanks, packaging and utilities complete the brewery.
